1500N Single Chain Actuator

1500N heavy -duty single chain actuator designed for large sized and heavy window .

Product Description


Overview :

1.Ideal for Large sized and heavy window .

2.Speed: 5-10mm/s .

3.Double-link stainless steel chain, with chrome-plated brass terminal

4.Low voltage DC24V and AC220V motors are energy efficient

5.Internal Synchronizer ( Multiple actuators synchronized )

6.Tight vent closure using electronic power cut-off

7.Adjustable stroke by a Adjustor.

8.Push/Pull Force up to 1500N

9.Opening distance ranges from 50 mm to 1000 mm approx., according to version

10.Temperature resistant (30 min/200°C) with 10,000 double strokes at the rated  load

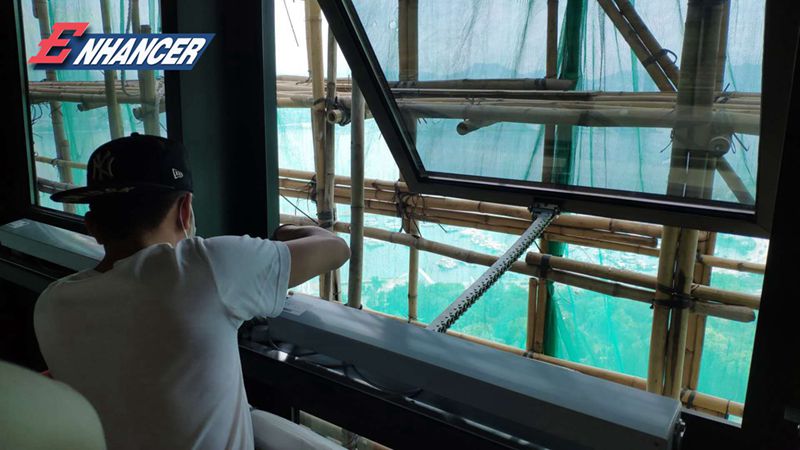

1.For automation of awning or hopper windows, skylights, or curtain wall vents.

2.For commercial, institutional and residential projects, including schools, universities, municipal buildings, offices, gymnasiums, homes, condos, and more.

3.Natural Ventilation systems, such as operable windows and skylights, save energy and lower operating costs by reducing air conditioning and heating use.

4.LEED credits for green building projects can be earned under Indoor

5.Environmental Quality for Natural Ventilation, Daylighting and Views.

6.Smoke Evacuation systems reduce smoke, heat and casualties during a fire;actuatorscomply with EN12101-2 and CE standard.

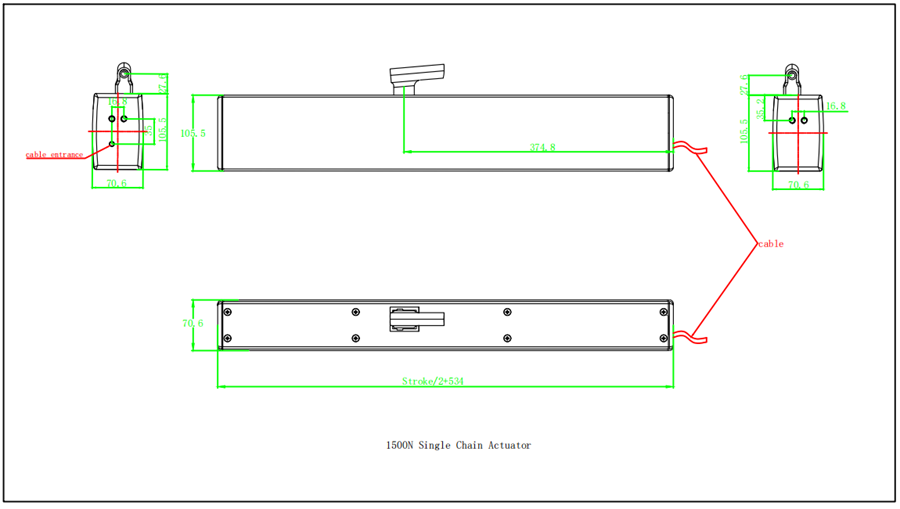

Dimension :
