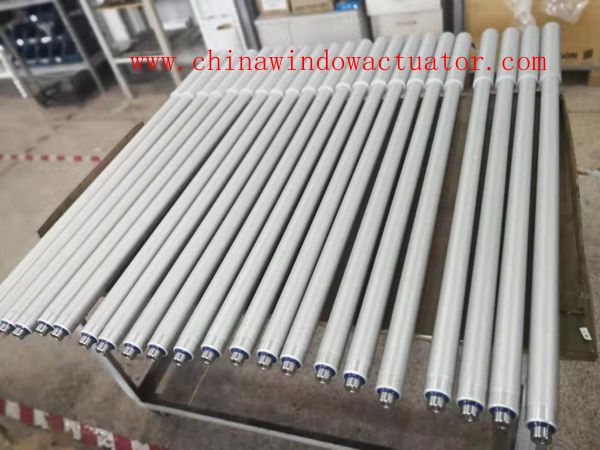

5000N Linear Actuator

Designed for heavy duty roof window.

Product Description

ENCO-L5000  DC24V

The Linear Actuator is applicable especially for weighty and/or wide types of windows.

 Thanks to its construction, it ensures pressure and tensile stability in any fitting position and

 can be used even under the most difficult conditions. The use of high quality

 materials and a proven precision linear rod provides for a long lifetime and a reliable function.

DC24V linear actuator can be produced into internal synchronizing,means 2 actuators work together without any external synchronizer anymore.

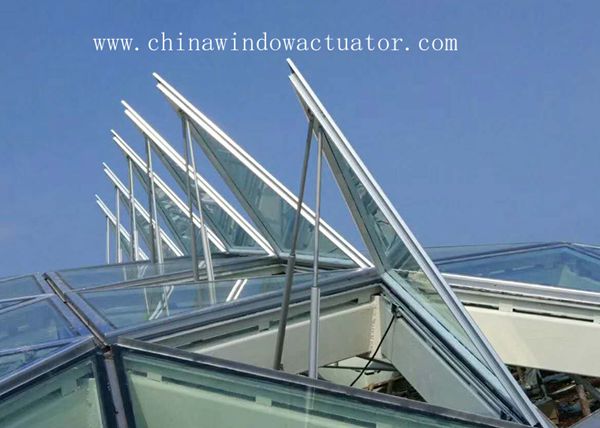

For wide Facade windows, roof flaps and domelights
Even load distribution on window wing
Tandem version for weighty loads
Push and pull force :5000N
Opening distance ranges from 50 mm to 1000 mm approx.
High protective system IP 65
Electronic limit stop and overload cutoff
Fire resistance (30 minutes/300°C) and 10,000 double strokes with rated load
Cable entry and drive unit interchangeable
Can be painted in all RAL colours
Individual stroke lengths and change of structural dimensions possible
Various options available, e.g. position and status indications, see drive options
Further accessories, see drive accessories,
smoke vent and ventilation controls
Actuators are PRODUCED ACCORDING TO EN12101-2 and CE standard
