Product Description

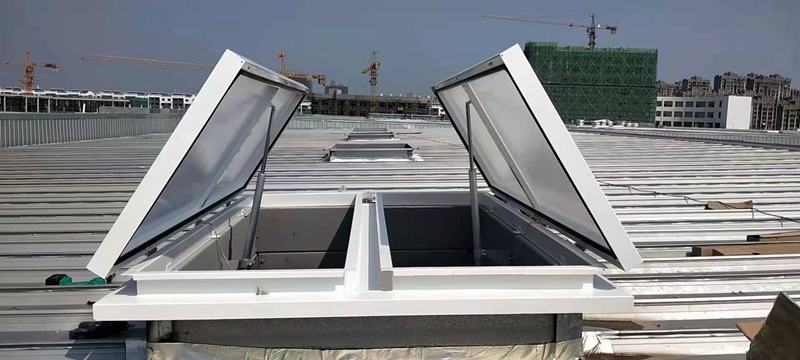

ENCO-AS Automatic Skylight
Application Scope
◆The general industrial &civil building's roof lighting, ventilation, smoke exhaust.
◆The roof slope range of buildings: 2%-10%.
◆Basic wind pressure: no more than 900Pa.◆Triangle Skylight
◆Linear Skylight
◆Arched Skylight
◆Wind Shelter Skylight
◆Side Open Skylight
◆Triangle Skylight and Linear Skylight are applied to the buildings, used for mainly lighting, opened if necessary. The maximum opening angles are 60° and 90°.
◆Wind Shelter Skylight is applied to the buildings, which guarantee ventilation &smoke exhaust in any weather. The maximum opening angle is 30°.
◆Arched Skylight is applied to the buildings, used for mainly ventilation. The maximum opening angle is 45°.
◆Side Open Skylight is usually applied to the industry workshop. The maximum opening angle is 45°.
Control Mode of Skylight
◆The actuator feature:
Current:24V DC or 220V AC, Power: 30W, Opening and Closing time：6-8 seconds.
◆The skylights are suitable for group control, the amount of each group is depended on the quantity and control distance of skylights.
◆Three control modes: general mode, intelligent method &intelligent network method.
