Product Description
Introduction
Hollow structure designed,spindle blade with double cambered surface,high strength and large span.

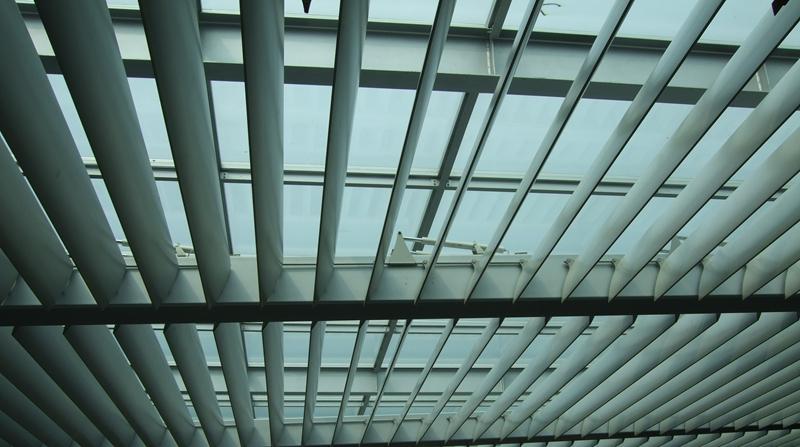

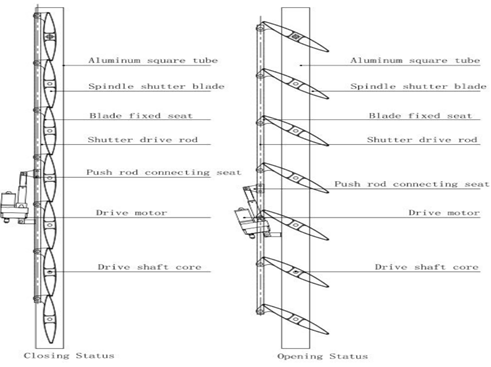

Reach sunshade,lighting, embellishment used on glass curtain wall. Powered by linear actuator to run the blades.
Features

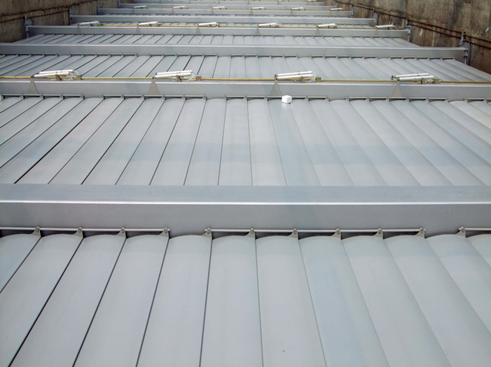

l Installation：vertical、crosswise、slant, used widely to large glass curtain wall,glass roof, building plane / elevation etc.
l The length of blade adjusted according to the width of blade.
l Adjustale opening angle bring various transmittance.
l 0-105° movement design，Can meet different request of building lighting , sunshade, Ventilation, dustproof.
The colour will be slected by client

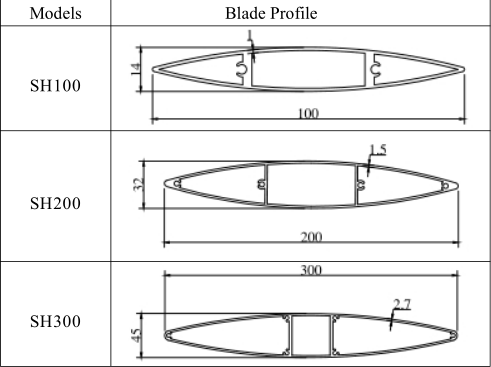

Technical Data
|
Models |
Sizes |
Appropriate length |
|
SH100 |
100mm*14mm |
1000-1600 mm |
|
SH200 |
200mm*30mm |
2500-3500 mm |
|
SH300 |
300mm*50mm |
3500-4500 mm |
|
Remarks：The blade should not be too long. |
||
